作业日志表

作业日志表记录作业的执行状态：作业名称、开始时间、结束时间、运行状态（Running：运行；Completed：完成；Failed：失败）。

CREATE TABLE
    t_etl_kjb_log
    (
        log_id     INT NOT NULL AUTO_INCREMENT,
        kjb_name   VARCHAR(255) NOT NULL,
        begin_dttm DATETIME DEFAULT '1970-01-01 00:00:00' NOT NULL,
        end_dttm   DATETIME DEFAULT '1970-01-01 00:00:00' NOT NULL,
        status     VARCHAR(10) NOT NULL,
        PRIMARY KEY(log_id)
    )
    ENGINE = InnoDB DEFAULT CHARSET = utf8;


CREATE VIEW
    v_etl_kjb_log AS
SELECT
    t1.kjb_name,
    t1.begin_dttm,
    t2.end_dttm,
    t2.status
FROM
    (
        SELECT
            kjb_name,
            MAX(begin_dttm) AS begin_dttm
        FROM
            t_etl_kjb_log
    GROUP BY
            kjb_name) t1
INNER JOIN
    t_etl_kjb_log t2
    ON
    t1.kjb_name = t2.kjb_name
    AND t1.begin_dttm = t2.begin_dttm;

数据表日志表

数据表日志表记录数据表的更新状态：作业名称、转换名称、数据表名称、开始时间、结束时间、运行状态（Running：运行；Completed：完成；Failed：失败）、更新计数、错误计数。

CREATE TABLE
    t_etl_tbl_log
    (
        log_id      INT NOT NULL AUTO_INCREMENT,
        kjb_name    VARCHAR(255) NOT NULL,
        ktr_name    VARCHAR(255) NOT NULL,
        tbl_name    VARCHAR(255) NOT NULL,
        begin_dttm  DATETIME DEFAULT '1970-01-01 00:00:00' NOT NULL,
        end_dttm    DATETIME DEFAULT '1970-01-01 00:00:00' NOT NULL,
        status      VARCHAR(10) NOT NULL,
        row_count   INT DEFAULT 0 NOT NULL,
        error_count INT DEFAULT 0 NOT NULL,
        PRIMARY KEY(log_id)
    )
    ENGINE = InnoDB DEFAULT CHARSET = utf8;


CREATE VIEW
    v_etl_tbl_log AS
SELECT
    t2.kjb_name,
    t2.ktr_name,
    t1.tbl_name,
    t1.begin_dttm,
    t2.end_dttm,
    t2.status,
    t2.row_count,
    t2.error_count
FROM
    (
        SELECT
            tbl_name,
            MAX(begin_dttm) AS begin_dttm
        FROM
            t_etl_tbl_log
    GROUP BY
            tbl_name) t1
INNER JOIN
    t_etl_tbl_log t2
    ON
    t1.tbl_name = t2.tbl_name
    AND t1.begin_dttm = t2.begin_dttm;

作业配置表

作业配置表记录作业的配置信息：作业名称、作业类型、启用标识、重试次数。

CREATE TABLE
    t_etl_kjb_cfg
    (
        cfg_id     INT NOT NULL AUTO_INCREMENT,
        kjb_name   VARCHAR(255) NOT NULL,
        kjb_type   VARCHAR(20) NOT NULL,
        is_enabled CHAR(1) DEFAULT 'N' NOT NULL,
        retries    INT DEFAULT 3 NOT NULL,
        PRIMARY KEY(cfg_id)
    )
    ENGINE = InnoDB DEFAULT CHARSET = utf8;

标准工作流

转换配置表

转换配置表记录作业中转换的配置信息：作业名称、转换名称、转换路径、数据表名称、启用标识。

CREATE TABLE
    t_etl_std_ktr_cfg
    (
        cfg_id     INT NOT NULL auto_increment,
        kjb_name   VARCHAR(255) NOT NULL,
        ktr_name   VARCHAR(255) NOT NULL,
        ktr_path   VARCHAR(255) NOT NULL,
        tbl_name   VARCHAR(255) NOT NULL,
        is_enabled CHAR(1) DEFAULT 'N' NOT NULL,
        PRIMARY KEY(cfg_id)
    )
    ENGINE = InnoDB DEFAULT CHARSET = utf8;

依赖关系表

依赖关系表记录作业中数据表的依赖关系：目标数据表、来源数据表、来源数据表 ETL 标识。

CREATE TABLE
    t_etl_std_dep_cfg
    (
        cfg_id          INT NOT NULL AUTO_INCREMENT,
        tbl_to          VARCHAR(255) NOT NULL,
        tbl_from        VARCHAR(255) NOT NULL,
        tbl_from_is_etl CHAR(1) DEFAULT 'N' NOT NULL,
        PRIMARY KEY(cfg_id)
    )
    ENGINE = InnoDB DEFAULT CHARSET = utf8;


CREATE VIEW
    v_etl_std_dep_cfg AS
SELECT
    cfg.tbl_to,
    cfg.tbl_from,
    cfg.tbl_from_is_etl,
    IFNULL(tl.end_dttm, STR_TO_DATE('1970-01-01', '%Y-%m-%d')) AS tbl_to_end_dttm,
    IFNULL(tl.status, 'Failed')                                AS tbl_to_status,
    CASE
        WHEN cfg.tbl_from_is_etl = 'Y'
        THEN IFNULL(fl.end_dttm, STR_TO_DATE('1970-01-01', '%Y-%m-%d'))
        ELSE STR_TO_DATE('2099-12-31', '%Y-%m-%d')
    END AS tbl_from_end_dttm,
    CASE
        WHEN cfg.tbl_from_is_etl = 'Y'
        THEN IFNULL(fl.status, 'Failed')
        ELSE 'Completed'
    END AS tbl_from_status
FROM
    t_etl_std_dep_cfg cfg
LEFT JOIN
    v_etl_tbl_log tl
    ON
    cfg.tbl_to = tl.tbl_name
LEFT JOIN
    v_etl_tbl_log fl
    ON
    cfg.tbl_from = fl.tbl_name;

流程设计

kjb_standard_workflow

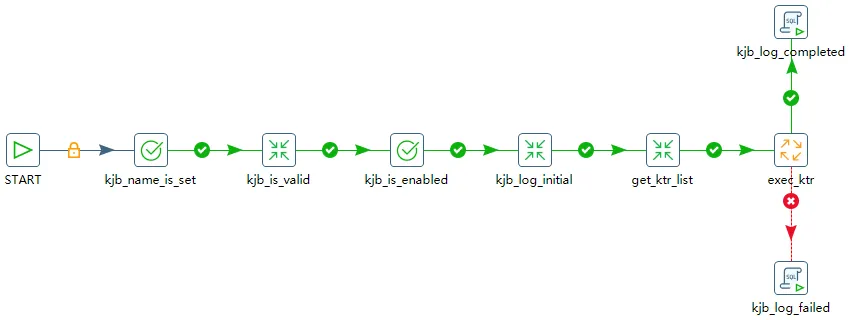

kjb_standard_workflow:

  1. Parameters 1. - Parameter: KJB_NAME - Default value: !@#$%^&*()
  2. START
  3. kjb_name_is_set
    • Evaluate: Variable
    • Variable name: ${KJB_NAME}
    • Type: String
    • Success condition: If value is different from
    • Value: !@#$%^&*()
  4. kjb_is_valid
    1. Table input
      • Replace variables in script
    2. Set Variables
      • Apply formatting
        • Field name: is_enabled
        • Variable name: KJB_IS_ENABLED
        • Variable scope type: Valid in the root job
        • Default value: N
        • Field name: retries
        • Variable name: MAX_RETRIES
        • Variable scope type: Valid in the root job
  5. kjb_is_enabled
    • Evaluate: Variable
    • Variable name: ${KJB_IS_ENABLED}
    • Type: String
    • Success condition: If value is equal to
    • Value: Y
  6. kjb_log_initial
    1. Table input
      • Replace variables in script
    2. Table output
      • Target table: t_etl_kjb_log
    3. Set Variables
      • Apply formatting
        • Field name: begin_dttm
        • Variable name: KJB_BEGIN_DTTM
        • Variable scope type: Valid in the root job
  7. get_ktr_list
    1. Table input
      • Replace variables in script
    2. Copy rows to result
  8. exec_ktr
    • Execute for every input row
  9. kjb_log_completed
    • Use variable substitution
  10. kjb_log_failed
    • Use variable substitution

exec_ktr

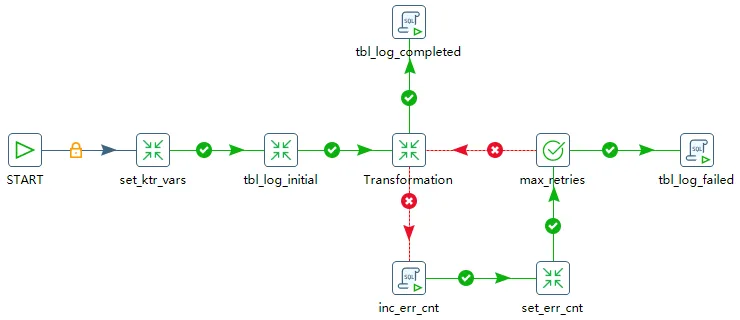

exec_ktr:

  1. START
  2. set_ktr_vars
    1. Get rows from result 1. - Fieldname: ktr_name - Type: String 2. - Fieldname: ktr_path - Type: String 3. - Fieldname: tbl_name - Type: String
    2. Set Variables
      • Apply formatting
        • Field name: ktr_name
        • Variable name: KTR_NAME
        • Variable scope type: Valid in the root job
        • Field name: ktr_path
        • Variable name: KTR_PATH
        • Variable scope type: Valid in the root job
        • Field name: tbl_name
        • Variable name: TBL_NAME
        • Variable scope type: Valid in the root job
  3. tbl_log_initial
    1. Table input
      • Replace variables in script
    2. Table output
      • Target table: t_etl_tbl_log
    3. Set Variables
      • Apply formatting
        • Field name: begin_dttm
        • Variable name: KTR_BEGIN_DTTM
        • Variable scope type: Valid in the root job
  4. Transformation
    • Specify by name and directory
      • ${KTR_NAME}
      • ${KTR_PATH}
  5. tbl_log_completed
    • Use variable substitution
  6. inc_err_cnt
    • Use variable substitution
  7. set_err_cnt
    1. Table input
      • Replace variables in script
    2. Set Variables
      • Apply formatting
        • Field name: error_count
        • Variable name: ERROR_COUNT
        • Variable scope type: Valid in the root job
  8. max_retries
    • Evaluate: Variable
    • Variable name: ${ERROR_COUNT}
    • Type: Number
    • Success condition: If value is greater or equal
    • Value: ${MAX_RETRIES}
  9. tbl_log_failed
    • Use variable substitution

kjb_standard_workflow

kjb_is_valid
SELECT
    is_enabled,
    retries
FROM
    t_etl_kjb_cfg
WHERE
    kjb_name = '${KJB_NAME}'
    AND kjb_type = 'STANDARD'
    AND is_enabled = 'Y';
kjb_log_initial
SELECT
    '${KJB_NAME}' AS kjb_name,
    NOW()         AS begin_dttm,
    'Running'     AS status
FROM
    dual;
get_ktr_list
SELECT
    cfg.ktr_name,
    cfg.ktr_path,
    cfg.tbl_name
FROM
    t_etl_std_ktr_cfg cfg
LEFT JOIN
    v_etl_tbl_log log
    ON
    cfg.tbl_name = log.tbl_name
WHERE
    cfg.kjb_name = '${KJB_NAME}'
    AND cfg.tbl_name IN
    (
        SELECT
            tbl_to
        FROM
            v_etl_std_dep_cfg
    GROUP BY
            tbl_to
        HAVING
            SUM(
                CASE
                    WHEN tbl_from_status = 'Completed'
                        AND tbl_from_end_dttm > tbl_to_end_dttm
                    THEN 0
                    ELSE 1
                END) = 0)
    AND cfg.is_enabled = 'Y'
    AND(
        log.status = 'Failed'
        OR log.end_dttm < CURDATE()
        OR log.end_dttm IS NULL);
kjb_log_completed
UPDATE
    t_etl_kjb_log
SET
    end_dttm = NOW(),
    status = 'Completed'
WHERE
    kjb_name = '${KJB_NAME}'
    AND begin_dttm = '${KJB_BEGIN_DTTM}';
kjb_log_failed
UPDATE
    t_etl_kjb_log
SET
    end_dttm = NOW(),
    status = 'Failed'
WHERE
    kjb_name = '${KJB_NAME}'
    AND begin_dttm = '${KJB_BEGIN_DTTM}';

exec_ktr

tbl_log_initial
SELECT
    '${KJB_NAME}' AS kjb_name,
    '${KTR_NAME}' AS ktr_name,
    '${TBL_NAME}' AS tbl_name,
    NOW()         AS begin_dttm,
    'Running'     AS status
FROM
    dual;
tbl_log_completed
UPDATE
    t_etl_tbl_log
SET
    end_dttm = NOW(),
    status = 'Completed',
    row_count = ${ROW_COUNT}
WHERE
    kjb_name = '${KJB_NAME}'
    AND ktr_name = '${KTR_NAME}'
    AND tbl_name = '${TBL_NAME}'
    AND begin_dttm = '${KTR_BEGIN_DTTM}';
inc_err_cnt
UPDATE
    t_etl_tbl_log
SET
    error_count = error_count + 1
WHERE
    kjb_name = '${KJB_NAME}'
    AND ktr_name = '${KTR_NAME}'
    AND tbl_name = '${TBL_NAME}'
    AND begin_dttm = '${KTR_BEGIN_DTTM}';
set_err_cnt
SELECT
    error_count
FROM
    t_etl_tbl_log
WHERE
    kjb_name = '${KJB_NAME}'
    AND ktr_name = '${KTR_NAME}'
    AND tbl_name = '${TBL_NAME}'
    AND begin_dttm = '${KTR_BEGIN_DTTM}';
tbl_log_failed
UPDATE
    t_etl_tbl_log
SET
    end_dttm = NOW(),
    status = 'Failed'
WHERE
    kjb_name = '${KJB_NAME}'
    AND ktr_name = '${KTR_NAME}'
    AND tbl_name = '${TBL_NAME}'
    AND begin_dttm = '${KTR_BEGIN_DTTM}';

运维工作流

转换配置表

转换配置表记录作业中转换的配置信息：作业名称、转换名称、转换路径、数据表名称、执行序号、启用标识。

CREATE TABLE
    t_etl_maint_ktr_cfg
    (
        cfg_id     INT NOT NULL AUTO_INCREMENT,
        kjb_name   VARCHAR(255) NOT NULL,
        ktr_name   VARCHAR(255) NOT NULL,
        ktr_path   VARCHAR(255) NOT NULL,
        tbl_name   VARCHAR(255) NOT NULL,
        is_enabled CHAR(1) DEFAULT 'N' NOT NULL,
        exec_order INT NOT NULL,
        PRIMARY KEY(cfg_id),
        CONSTRAINT unq_kjb_name_exec_order UNIQUE(kjb_name, exec_order)
    )
    ENGINE = InnoDB DEFAULT CHARSET = utf8;

流程设计

kjb_maintenance_workflow

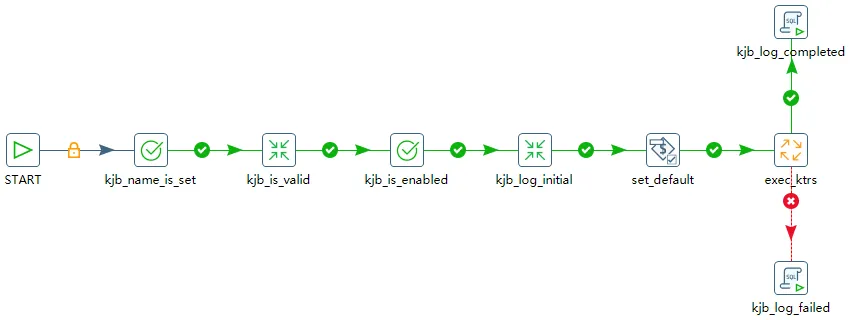

kjb_maintenance_workflow:

  1. Parameters 1. - Parameter: KJB_NAME - Default value: !@#$%^&*()
  2. START
  3. kjb_name_is_set
    • Evaluate: Variable
    • Variable name: ${KJB_NAME}
    • Type: String
    • Success condition: If value is different from
    • Value: !@#$%^&*()
  4. kjb_is_valid
    1. Table input
      • Replace variables in script
    2. Set Variables
      • Apply formatting
        • Field name: is_enabled
        • Variable name: KJB_IS_ENABLED
        • Variable scope type: Valid in the root job
        • Default value: N
        • Field name: retries
        • Variable name: MAX_RETRIES
        • Variable scope type: Valid in the root job
  5. kjb_is_enabled
    • Evaluate: Variable
    • Variable name: ${KJB_IS_ENABLED}
    • Type: String
    • Success condition: If value is equal to
    • Value: Y
  6. kjb_log_initial
    1. Table input
      • Replace variables in script
    2. Table output
      • Target table: t_etl_kjb_log
    3. Set Variables
      • Apply formatting
        • Field name: begin_dttm
        • Variable name: KJB_BEGIN_DTTM
        • Variable scope type: Valid in the root job
  7. set_default
    • Variables 1. - Variable name: EXEC_ORDER - Value: 0 - Variable scope type: Valid in the root job
  8. exec_ktrs
  9. kjb_log_completed
    • Use variable substitution
  10. kjb_log_failed
    • Use variable substitution

exec_ktrs

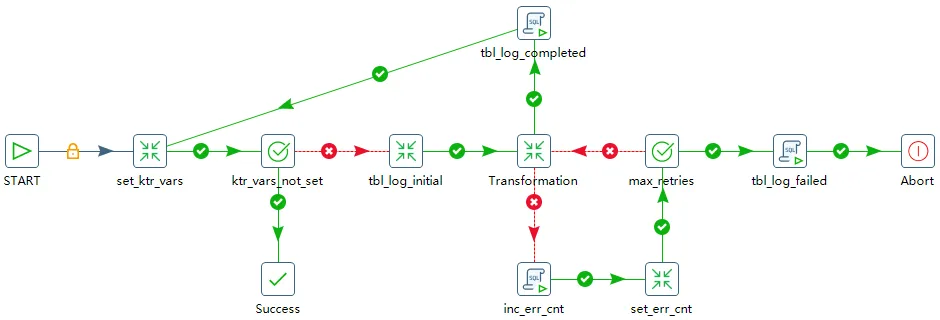

exec_ktrs:

  1. START
  2. set_ktr_vars
    1. Table input
      • Replace variables in script
    2. Set Variables
      • Apply formatting
        • Field name: ktr_name
        • Variable name: KTR_NAME
        • Variable scope type: Valid in the root job
        • Default value: !@#$%^&*()
        • Field name: ktr_path
        • Variable name: KTR_PATH
        • Variable scope type: Valid in the root job
        • Default value: !@#$%^&*()
        • Field name: tbl_name
        • Variable name: TBL_NAME
        • Variable scope type: Valid in the root job
        • Default value: !@#$%^&*()
        • Field name: exec_order
        • Variable name: EXEC_ORDER
        • Variable scope type: Valid in the root job
        • Default value: !@#$%^&*()
  3. ktr_vars_not_set
    • Evaluate: Variable
    • Variable name: ${EXEC_ORDER}
    • Type: String
    • Success condition: If value is equal to
    • Value: !@#$%^&*()
  4. Success
  5. tbl_log_initial
    1. Table input
      • Replace variables in script
    2. Table output
      • Target table: t_etl_tbl_log
    3. Set Variables
      • Apply formatting
        • Field name: begin_dttm
        • Variable name: KTR_BEGIN_DTTM
        • Variable scope type: Valid in the root job
  6. Transformation
    • Specify by name and directory
      • ${KTR_NAME}
      • ${KTR_PATH}
  7. tbl_log_completed
    • Use variable substitution
  8. inc_err_cnt
    • Use variable substitution
  9. set_err_cnt
    1. Table input
      • Replace variables in script
    2. Set Variables
      • Apply formatting
        • Field name: error_count
        • Variable name: ERROR_COUNT
        • Variable scope type: Valid in the root job
  10. max_retries
    • Evaluate: Variable
    • Variable name: ${ERROR_COUNT}
    • Type: Number
    • Success condition: If value is greater or equal
    • Value: ${MAX_RETRIES}
  11. tbl_log_failed
    • Use variable substitution
  12. Abort

kjb_maintenance_workflow

kjb_is_valid
SELECT
    is_enabled,
    retries
FROM
    t_etl_kjb_cfg
WHERE
    kjb_name = '${KJB_NAME}'
    AND kjb_type = 'MAINTENANCE'
    AND is_enabled = 'Y';
kjb_log_initial
SELECT
    '${KJB_NAME}' AS kjb_name,
    NOW()         AS begin_dttm,
    'Running'     AS status
FROM
    dual;
kjb_log_completed
UPDATE
    t_etl_kjb_log
SET
    end_dttm = NOW(),
    status = 'Completed'
WHERE
    kjb_name = '${KJB_NAME}'
    AND begin_dttm = '${KJB_BEGIN_DTTM}';
kjb_log_failed
UPDATE
    t_etl_kjb_log
SET
    end_dttm = NOW(),
    status = 'Failed'
WHERE
    kjb_name = '${KJB_NAME}'
    AND begin_dttm = '${KJB_BEGIN_DTTM}';

exec_ktrs

set_ktr_vars
SELECT
    ktr_name,
    ktr_path,
    tbl_name,
    exec_order
FROM
    t_etl_maint_ktr_cfg
WHERE
    (
        kjb_name, exec_order) =
    (
        SELECT
            kjb_name,
            MIN(exec_order)
        FROM
            t_etl_maint_ktr_cfg
        WHERE
            kjb_name = '${KJB_NAME}'
            AND is_enabled = 'Y'
            AND exec_order > '${EXEC_ORDER}');
tbl_log_initial
SELECT
    '${KJB_NAME}' AS kjb_name,
    '${KTR_NAME}' AS ktr_name,
    '${TBL_NAME}' AS tbl_name,
    NOW()         AS begin_dttm,
    'Running'     AS status
FROM
    dual;
tbl_log_completed
UPDATE
    t_etl_tbl_log
SET
    end_dttm = NOW(),
    status = 'Completed',
    row_count = ${ROW_COUNT}
WHERE
    kjb_name = '${KJB_NAME}'
    AND ktr_name = '${KTR_NAME}'
    AND tbl_name = '${TBL_NAME}'
    AND begin_dttm = '${KTR_BEGIN_DTTM}';
inc_err_cnt
UPDATE
    t_etl_tbl_log
SET
    error_count = error_count + 1
WHERE
    kjb_name = '${KJB_NAME}'
    AND ktr_name = '${KTR_NAME}'
    AND tbl_name = '${TBL_NAME}'
    AND begin_dttm = '${KTR_BEGIN_DTTM}';
set_err_cnt
SELECT
    error_count
FROM
    t_etl_tbl_log
WHERE
    kjb_name = '${KJB_NAME}'
    AND ktr_name = '${KTR_NAME}'
    AND tbl_name = '${TBL_NAME}'
    AND begin_dttm = '${KTR_BEGIN_DTTM}';
tbl_log_failed
UPDATE
    t_etl_tbl_log
SET
    end_dttm = NOW(),
    status = 'Failed'
WHERE
    kjb_name = '${KJB_NAME}'
    AND ktr_name = '${KTR_NAME}'
    AND tbl_name = '${TBL_NAME}'
    AND begin_dttm = '${KTR_BEGIN_DTTM}';

转换模板

Transformation

Transformation:

  1. Execute SQL script
  2. Table input
  3. Table output
  4. Output steps metrics
    • General
      • Step name: Table output
      • Copy Nr: 0
      • Required: N
    • Fields
      • Lines written: row_count
  5. Set Variables
    • Apply formatting
      • Field name: row_count
      • Variable name: ROW_COUNT
      • Variable scope type: Valid in the root job
      • Default value: 0
